Most electricians are still flicking through old manuals, but if your cable tray installation isn't up to the BS 7671:2018+A4:2026 standard by October 15th, you're essentially building a legal liability.
It's a proper headache trying to figure out if a "medium duty" tray will actually hold the weight or just buckle under a heavy load of armoured cable.
Honestly, you've probably spent more time than you'd like worrying about brand compatibility or watching outdoor installs turn orange with rust in six months.
You want a setup that looks professional and stays secure without paying through the nose for a name brand that doesn't even fit your strut.
This guide is here to help you choose, install, and source the right steel cable tray for UK industrial projects without the usual fluff.
We're going to break down the duty levels that actually matter, how to ensure your hardware fits together, and the best way to keep your bulk costs sensible whilst staying fully compliant.
I've walked onto enough job sites to know exactly when a contractor is cutting corners. You see it in the sagging wires and the zip ties holding on for dear life against a piece of rusty pipe. It's a mess.
Think of a What is a Cable Tray as the skeleton for your building's electrical nervous system. Without that rigid support, you're just draping expensive copper over whatever's handy and hoping for the best.
That leads straight to the dreaded spaghetti mess. We've all seen those server rooms or factory ceilings that look like a bowl of carbonara gone wrong. It's a maintenance nightmare that eats up billable hours the moment a fault occurs.
A proper cable tray system organises that chaos into a clean, manageable run. It makes tracing a specific line simple instead of a three-hour guessing game. Here's where it gets interesting, though.
Most people forget that cables generate heat. If you bunch them together in a tight bundle, they start to cook themselves under heavy electrical loads. The perforated design of a steel tray allows for constant air circulation, which keeps the temperature down and the efficiency up.
Then there's the physical protection. In a busy industrial environment, things get dropped and forklifts go where they shouldn't. A solid steel tray acts as a shield for your wiring, preventing snags or crushing that could shut down an entire production line.
It's easy to get these confused, but the choice matters for your load. Trays are usually perforated steel sheets whilst baskets are wire mesh systems. Baskets are lightweight and great for data cables because you can cut and bend them easily on-site.
Honestly, for heavy power cables or armoured wiring, the tray is usually the winner. It provides more surface area for support and much better protection against mechanical stress. If you're running thick mains cable, don't risk the mesh.
You'll find these systems everywhere if you look up. They're essential in factories and warehouses where heavy-duty support is non-negotiable for safety. Data centres are another huge user, housing thousands of cat6 cables in perfectly organised rows.
Even in high-end commercial offices, they're working hard whilst hiding behind the ceiling tiles. They provide the backbone for everything from the HVAC sensors to the lighting circuits. It's the hardware that keeps the lights on, quite literally.
I've seen it happen on a Friday afternoon. A contractor tries to save a few quid by choosing a light-duty run where they really needed the heavy stuff.
By Monday morning, that cable tray looks like a discarded piece of tinsel. It's sagging in the middle, and the client is already on the phone asking why their new warehouse looks like a DIY disaster.

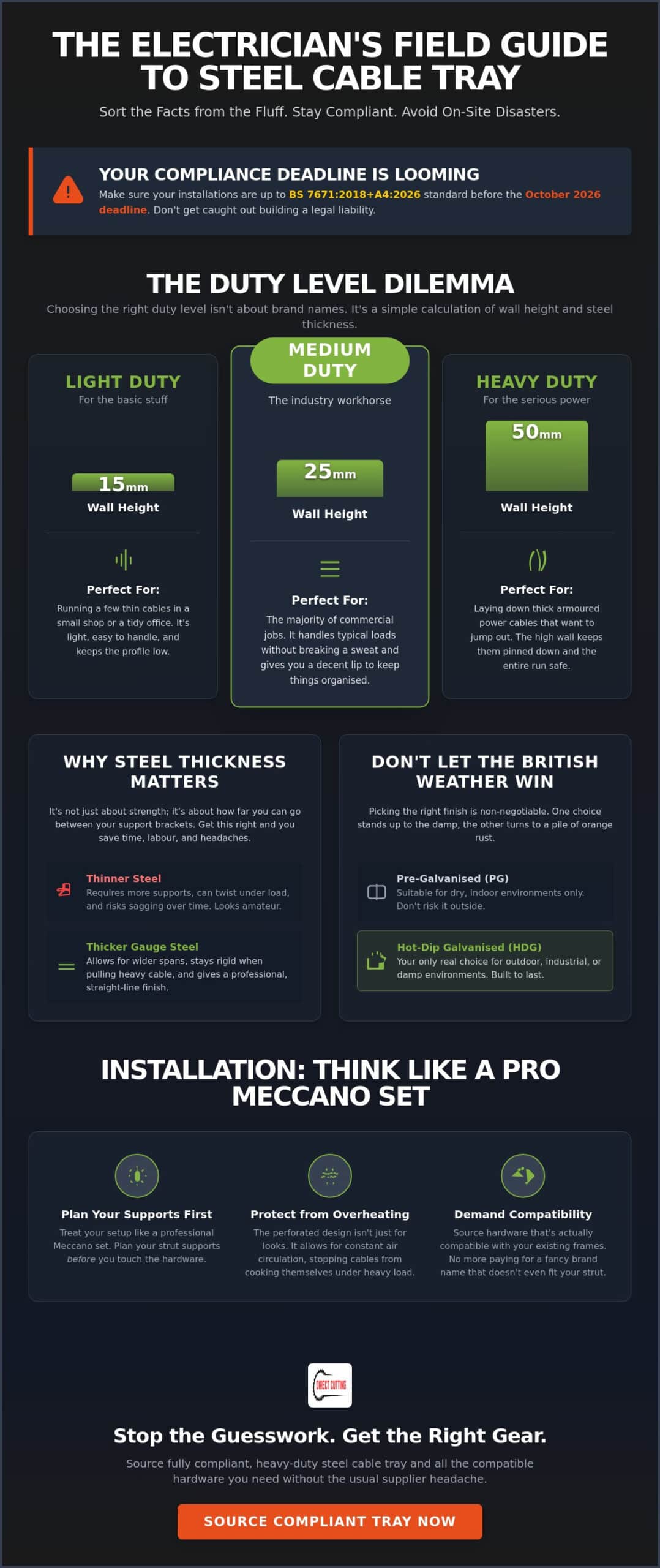

Choosing your duty level isn't about following a brand's marketing department. It's a simple calculation of wall height and steel thickness. If you get it wrong, you aren't just dealing with an ugly install; you're looking at total structural failure.
You'll usually see three main options when you're sourcing gear. Most people just look at the width, but the wall height is what actually keeps your cables in the tray when you're pulling them around a corner.
A 15mm wall is perfect for the basic stuff. If you're running a few thin cables in a small shop or a tidy office, you don't need a massive wall to keep them in place. It's light, easy to handle, and keeps the profile low.
Then you have the 25mm Medium Duty option. This is the industry standard for a reason. It handles the majority of commercial jobs without breaking a sweat and gives you enough of a lip to keep things organised whilst you're clipping them down.
Finally, there's the 50mm Heavy Duty beast. When you're laying down thick armoured power cables that want to jump out of the tray, you need that high wall to keep them pinned down. It's about retention as much as it is about strength. If those cables aren't contained, the whole run becomes a safety hazard.
Here's where it gets interesting for your bottom line. Thicker steel isn't just about raw strength; it's about how far you can go between your support brackets.
If you use a heavy-duty tray with thicker gauge steel, you can often push your spans wider. It also stops the tray from twisting like a pretzel when you're hauling a heavy drum of cable through the run. That rigidity is what gives you that professional, straight-line finish that clients love.
Using thinner steel requires more support brackets which actually increases your total project cost once you factor in the extra hardware and labour time. Honestly, it's usually better to over-spec the steel than to spend your weekend fixing a run that couldn't handle the weight.
You want a secure, professional-looking installation that doesn't require a call-back in six months. If you're unsure which fixings you need for your specific span, checking out some quality bracketry will give you a better idea of the support required for each duty level.
Let's be honest about the British weather for a second.
It isn't just miserable for us; it's a death sentence for unprotected steel hardware.
If you've ever seen a cable tray turn a fuzzy shade of orange within six months of being installed, you know exactly what I'm talking about.
Choosing the wrong finish is the fastest way to ruin a professional reputation.
For most indoor, dry commercial projects, pre-galvanised steel is your best friend.
It's smooth, relatively cheap, and looks clean under office lights.
Here's where it gets interesting, though.
Pre-galv is made by coating the steel before it's cut into shape.
That means every time you snip a section to length, you're leaving a raw, unprotected edge that's practically begging for moisture to move in.
If you're working anywhere damp, outdoors, or near the coast, you need to step up to Hot-Dipped Galvanised (HDG).
HDG is dipped into the molten zinc after it's been fabricated, whilst pre-galv is coated at the mill.
This creates a much thicker, slightly rougher coating that actually has "self-healing" properties.
The chemical bond is much deeper than a simple surface layer.
If the surface gets scratched during a rough install, the surrounding zinc sacrifices itself to protect the steel underneath through a process called galvanic action.
It's like having a built-in repair kit for your support system.
It's a bit more expensive, sure.
But compared to the cost of replacing an entire run of rusted hardware at a chemical plant or a coastal site, it's a smart investment.
For the really extreme environments like food processing plants or marine docks, stainless steel is the only sensible choice.
It won't react with harsh cleaning chemicals and laughs at salt spray.
You might have seen it before: that light brown, streaky rust that starts at the bolt holes.
The trade calls it tea staining.
It usually happens because someone used cheap, mismatched fixings.
If you pair a high-quality tray with low-grade bolts, the two metals will fight each other.
This is especially common when mixing stainless steel with lower-grade zinc plates.
Always match your fixings to your tray material to avoid trouble.
If you're using zinc-plated trays, use nyloc nuts or standard zinc plated nuts to keep the whole system consistent.
It's a small detail, but it's the difference between a job that looks great for decades and one that looks like a bodge job by Christmas.
You don't want to be the one explaining to a client why their "new" install looks like it's been pulled from a shipwreck.
Installing a cable tray is essentially just a giant Meccano set for adults.
It looks simple enough on paper, but if you don't plan your supports before you touch the steel, you'll end up with a wonky run that looks like a dog's dinner.
Some big brands want you to use their special proprietary clips that cost a fortune.
Honestly, most tradespeople I know prefer standard, compatible hardware they already have in the van.
It's about getting the job done without needing a specialist tool for every single bolt.
Cable tray couplers are the secret to a straight, professional-looking run.
They keep the sections aligned so you don't get those ugly gaps or jagged edges where the tray lengths meet.
Your strut channel acts as the main cross-beam for the whole system.
You hang it from the ceiling using a threaded rod, creating a solid frame that isn't going anywhere.
For the full picture on how these pieces fit together, check out our guide to strut channel UK.
It's the backbone of any serious installation.
You can't just bend steel with your bare hands and expect it to look professional.
You need proper 90-degree bends and tees to navigate around corners and pillars without damaging the cables.
I always recommend using nyloc nuts because they won't rattle loose if there's vibration from the building's plant room.
Also, grab some square plate washers to spread the load on your trapeze brackets.
It stops the metal from deforming under the weight of a full cable load.
Don't forget the earth continuity, either.
Inspectors love to check this, so use proper earth links across your couplers to keep the whole run electrically bonded.
It's a small step that saves a massive headache during the final sign-off.
Ready to get started?
You can find all the cable tray accessories you need right here. For a deeper look at the connectors, brackets, and fixings that determine whether you're home by five or still faffing with a drill, our guide to cable tray accessories UK covers the essential kit in full.
Buying your metal support systems should honestly be the easiest part of your entire week.
There is nothing worse than trying to explain the difference between a light-duty and medium-duty tray to a sales rep who has never stepped foot on a construction site.
You need a supplier who understands the trade, not just the spreadsheets.
When you're ordering hundreds of metres of hardware, you're looking for two things: absolute compatibility and a price that doesn't make your project manager weep.
Compatibility with standard strut systems is the number one priority.
If your cable tray doesn't line up perfectly with your existing frames, you're looking at hours of wasted labour and a lot of frustrated swearing.
It's about finding that sweet spot where the hardware is rugged enough for a British warehouse but priced sensibly enough for bulk procurement.
We've all seen the markups some of the big-name distributors try to get away with just because they have a fancy logo on the box.
Cutting tray on a cold, damp job site is a miserable task that eats into your profit margin.
Every minute your team spends sawing and filing is a minute they aren't actually installing.
Using pre-cut lengths saves you hours of back-breaking labour.
It isn't just about the time, though.
When you cut steel on-site, you're often stripping away the protective layer and inviting rust to take hold.
Ordering pre-cut sections keeps the factory-applied galvanised coating intact on the ends.
It's a cleaner finish, a safer edges for your cables, and a much faster way to get the job signed off and move on to the next task.
We focus on the hardware that actually works on a UK site without the usual corporate fluff.
Our range is designed to be fully compatible with major names like Unistrut, so you can swap parts in and out without any alignment issues.
You can browse our steel cable tray range to see exactly what we mean.
We don't do flashy marketing because we know the utility of the hardware speaks for itself.
It's about providing the tools necessary to get a job done correctly the first time.
Whether you need a few lengths for a retail refit or a massive order for a new data centre, we treat every project with the same pragmatic approach.
Nobody wants to spend their Sunday night worrying if a run of steel is going to sag or rust through.
It all comes down to picking the right duty level for your load and the correct finish for the environment.
If you get those two things right, the rest of the job is just a matter of putting the pieces together.
A professional cable tray setup isn't just about tidying wires; it's about building a system that stays secure for decades.
We've built our business around the hardware that actually works for the trade.
Our systems are fully Unistrut compatible and we offer next-day dispatch on 95% of orders.
You get trade-focused sensible pricing without the corporate nonsense or the massive markups.
Stop fighting with mismatched gear and start using the stuff that fits the first time.
Shop our range of compatible Cable Trays and Accessories and get your project moving.
Your next installation is going to look brilliant.
The standard length for a cable tray in the UK is 3 metres. This size is the industry norm because it fits into most transit vans and is easy enough for two people to handle on a lift.
You can certainly use a hacksaw, but you'll have a very long day if you have more than a couple of cuts to make. Most pros use an angle grinder or a chop saw for speed and a cleaner edge. Just make sure you file down any burrs so you don't slice through your cable insulation later on.
The main difference is the wall height and the thickness of the steel used in the manufacturing process. Light duty usually has a 15mm wall and thinner gauge steel, whilst medium duty moves up to a 25mm wall. Medium duty is the standard choice for most commercial projects because it handles heavier loads without twisting.
You should generally aim to place your supports every 1.2 to 1.5 metres. If you're running heavy power cables, stick to the 1.2m mark to prevent any visible sagging. It's much cheaper to add an extra bracket now than it is to come back and fix a buckled run next year.
Yes, you absolutely need to ensure electrical bonding for earth continuity across the entire run. This is a strict requirement under the BS 7671 wiring regulations to keep the installation safe. Use proper earth links at every joint to make sure the inspectors are happy with the continuity readings.
Couplers are the metal plates used to join two separate lengths of tray into one continuous run. They provide the mechanical strength to keep the joints from pulling apart and help maintain the electrical bonding. Without them, your run would be flimsy and potentially dangerous. For a full breakdown of how to choose and use them correctly, our guide to cable tray couplers covers everything you need to know.
You can use it for small, lightweight pipes like plastic overflows or HVAC condensate lines, but it isn't the standard tool for the job. For proper copper or steel pipework, you're better off using strut channel and dedicated pipe clamps. It's about using the right support for the weight of the fluid in those pipes.
