What if I told you that your cable tray weight capacity is completely irrelevant if you get your support centres wrong by just half a metre?
It’s a nagging fear that follows many of us around the job site.
You’re looking at a thick bundle of heavy-duty power cables and wondering if the whole run is going to sag or, even worse, end up on the floor.
Most of us have spent far too long staring at technical data sheets that feel like they’re written in a different language.
Honestly, getting a grip on your loading shouldn't require a degree in structural engineering or a week of training.
You just want to know if the kit you’ve ordered can handle the weight without buckling under the pressure.
I’m going to show you exactly how to work out your loading requirements without the usual technical headache or confusing jargon.
We’ll break down the Safe Working Load (SWL) and explain why your span distance is the real secret to a safe, professional installation.
Here’s where it gets interesting; we’ll also look at how to pick the right strut and brackets to make sure your cable management stays put for good.

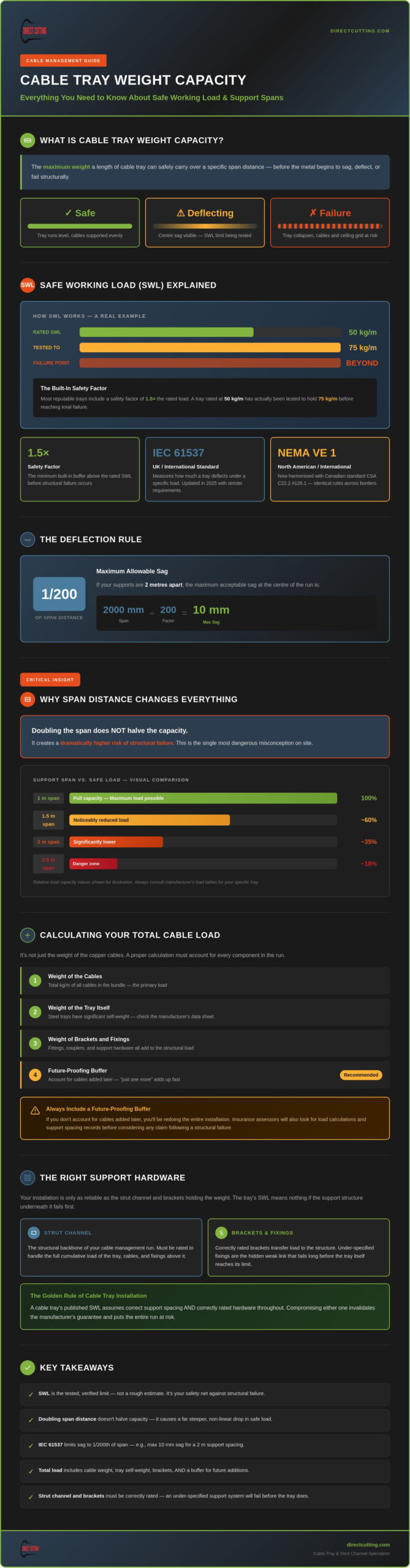

Think of your cable tray weight capacity as the literal breaking point of your entire cable management setup.
It’s the absolute limit of what your Cable tray system can handle before things start to go south on the job site.
To better understand this concept, watch this helpful video:
In the simplest terms, capacity is the maximum weight a length of tray can carry safely over a specific distance.
Here’s where it gets interesting; a tray rarely just snaps in half like a dry twig when it’s overloaded.
Instead, the metal starts to groan and "deflect" until the run looks more like a hammock than a professional installation.
That sag is the first warning sign that you’ve pushed the steel too far.
If you are installing a high-quality cable tray, you need to realise that capacity isn't just a fixed number printed in a catalogue; it's a moving target that depends entirely on your support centres.
A collapsed tray isn't just a bit of annoying extra labour on a Friday afternoon.
It is a genuine disaster that can pull down entire ceiling grids and ruin thousands of pounds worth of sensitive, expensive cabling.
Insurance companies are incredibly savvy to these kinds of structural failures, too.
If a run fails, they will look for your load calculations and support spacing before they even consider paying out a claim.
You have to remember that it’s about much more than just the weight of the copper inside the tray.
You’ve got to account for the weight of the tray itself, the brackets, and the very real possibility of someone adding "just one more cable" in six months' time.
In the trade, we use a specific term for this called the Safe Working Load, or SWL.
The SWL is the specific weight that a manufacturer guarantees the tray can hold without falling apart or bending excessively.
Most reputable kits include a built-in safety factor, which is usually 1.5 times the rated load.
This means if your tray is rated for 50kg per metre, it has actually been tested to hold 75kg before it reaches a point of total failure.
SWL is the industry standard for safe cable management that ensures your project stays up and stays safe for the long haul.
It gives you a tested, verified limit that takes the dangerous guesswork out of your installation.
Most of the kit you’ll find in the UK follows either IEC 61537 or NEMA VE 1 standards.
These aren't just boring documents for inspectors to tick off; they’re the rules that stop your hard work from falling down.
International standards for cable tray performance were actually updated in 2025 to introduce even stricter requirements for load capacity.
These tests are designed to measure exactly how much a tray deflects under a specific amount of pressure.
Deflection is really just a fancy engineering word for the sag you see in the middle of a run.
If you see a tray dipping, it’s a sign that the cable tray weight capacity is being tested to its limit.
The standard rule of thumb for deflection is 1/200th of the span distance.
So, if your supports are two metres apart, you shouldn't see a sag of more than 10 millimetres in the centre.
You should also know that NEMA VE 1 is now harmonised with the Canadian standard CSA C22.2 Specification #126.1.
This means the rules are identical across borders, which is handy if you’re working on international contracts.
You’ll often hear engineers talk about "ultimate failure," which is the point where the metal actually buckles or snaps.
Honestly, you never want to get anywhere near that number on a live job.
The SWL is your safety net, giving you a comfortable buffer so you can sleep at night.
It ensures that even if a technician adds extra weight later, the whole system isn't going to come crashing down.
Trays are often classed by how much weight they can carry over a set span distance.
A "Class A" tray is built for different loading scenarios than a "Class C" version.
Knowing your class helps you pick the right cable tray for the specific run you are installing.
It’s about matching the hardware to the environment, whether that’s a light data centre or a heavy industrial plant.
Getting the cable tray weight capacity right from the start saves you a massive headache during the final inspection.
If you aren't sure which class your project needs, it’s worth checking the technical specs on a reliable heavy-duty cable tray before you start drilling into the masonry.
If you’re standing on a ladder trying to stretch a run just a little further to save on a bracket, stop right there.
The distance between your supports is the single biggest factor in your cable tray weight capacity.
It’s a common mistake to think that doubling the span simply halves the weight the tray can hold.
Honestly, the physics are much meaner than that.
When you increase the gap between supports, the capacity drops at an exponential rate.
A tray that feels rock-solid at 1.5 metres might fold like a deck of cards if you push it to 3 metres without changing the spec.
Most commercial tray systems are engineered specifically for a 1.2m or 1.5m support span to maintain their structural integrity.
I’ve seen plenty of projects where the installer tried to save a few quid on strut and ended up with a run that looked like a wet noodle.
Here’s where it gets interesting; the tray doesn't just sag, it loses its ability to resist twisting forces too.
For the vast majority of standard commercial jobs, you should aim for 1.5-metre intervals.
It’s the sweet spot for balance, cost, and safety.
If you know the cable bundle is going to be particularly dense or heavy, dropping that span to 1.2 metres makes the whole run significantly stiffer.
You’ve also got to think about the fittings.
You should always place a support within 600mm of any bend, tee, or riser.
This prevents the weight of the cables during the turn from twisting the tray out of its brackets.
Instead of trying to decipher complex logarithmic charts on a windy site, use this simple logic for your planning.
| Support Span | Capacity Expectation |
|---|---|
| 1.2 metres | Maximum stiffness; best for high-density power cables. |
| 1.5 metres | Industry standard; ideal for most general installations. |
| 2.0 metres | Capacity drops sharply; requires careful load checking. |
| 3.0 metres | Heavy-duty tray or ladder tray is mandatory here. |
If you find yourself forced to have a gap larger than 2 metres because of the building’s structure, you can't just use standard light-duty tray.
You’ll need to switch to a heavy-duty variant or a ladder system designed for long-span applications.
You can find more practical details on getting your spacing right in our guide on how to install cable tray.
Getting the span right isn't just about following a manual; it’s about making sure your installation doesn't become a liability for the building owner later on.
Calculating the weight of a run isn't just about guessing how heavy a box of cable feels in your hand.
You need to know the mass of every single cable in that bundle before you start loading up the steel.
Honestly, I've seen plenty of guys forget that weight isn't just about the copper inside; it's the insulation and the cable tray weight capacity you're testing.
If you don't do the maths now, you'll be staring at a sagging tray by the time the job is finished.
It's a mistake that usually ends with a very awkward conversation with the site manager.
A standard 4mm twin and earth is light enough to carry all day, but a 50mm armoured cable is a different beast entirely.
You can't eyeball this; you need to use a proper cable weight calculator or a manufacturer data sheet for actual accuracy.
The total mass of your installation is the sum of the cable weight plus an extra 20% for future additions.
That extra bit of breathing room saves a massive headache when the client decides they need more power in six months.
It's always better to have a bit of spare capacity than to have to rip out the whole system later because you didn't plan ahead.
If your tray is living outdoors, the cables are only half the story.
Outdoor trays have to handle wind, ice, and even snow loads without buckling under the strain.
In some parts of the UK, a heavy snowfall can add significant weight to a wide tray, especially if it's already near its limit.
You need to ensure you use the right cable tray accessories to secure the load and the tray itself.
Weak fixings will fail long before the tray does if the wind picks up or the ice builds up.
Here’s where it gets interesting; wind can actually create an uplift force that tries to rip the tray off its supports.
Getting your numbers right at the start is the only way to be sure your cable tray weight capacity is actually sufficient for the environment.
Once you've done the maths, you can source the right steel cable tray to get the job done properly.
You’ve done the hard work of crunching the numbers and checking your span distances.
But here is the cold, hard truth: your cable tray weight capacity is completely theoretical if the brackets holding it up are weak.
I’ve seen plenty of trays that were perfectly rated for the job end up twisted on the floor because the installer used flimsy, off-brand supports.
It’s a classic case of saving a few pennies on the foundation and losing pounds on the failure.
Your installation is only ever as reliable as the strut channel that keeps it in place.
Weak brackets will fail long before the steel tray even begins to groan under the weight.
If you want to walk away from a job with total confidence, you have to treat the support system with the same respect as the tray itself.
This level of precision is exactly what professional systems integrators like UTD Technology Corp prioritise when designing robust infrastructure for both commercial and residential projects.
When you are dealing with heavy overhead runs, standard trapeze hangers are the absolute go-to for tradespeople.
Usually, an M10 or M12 threaded rod is the industry standard for most trapeze brackets.
You’ve got to ensure that your rod is properly anchored into the concrete or steelwork above.
If the anchor isn't right, the weight of the cables will just pull the whole lot out of the ceiling.
Here’s a tip I’ve learned the hard way: your threaded rods must be perfectly vertical.
If they’re at even a slight angle, you’re introducing lateral forces that significantly reduce their capacity.
It’s a simple detail, but it’s the difference between a job that passes inspection and one that requires a full refit.
Strut provides a rigid, dependable base that prevents the tray from twisting under the weight of heavy power cables.
It isn't just about strength, though; it’s about the flexibility it gives you on the job site.
Using strut channel allows for easy adjustment and makes multi-tier tray installations much simpler to organise.
You can stack runs vertically without having to drill a dozen new holes in the masonry.
Honestly, sourcing your tray, strut, and accessories from one place is the smartest move you can make.
It ensures total compatibility across the whole system, so you aren't fighting with mismatched parts while you’re up a ladder.
Direct Cutting provides the heavy-duty gear you need to keep everything level and secure, no matter how much copper you’re throwing at it.
You want to be certain that your cable tray weight capacity is backed up by hardware that won't let you down as that cable bundle grows over the years.
Honestly, getting your head around cable tray weight capacity doesn't have to be a massive chore.
You now know why the Safe Working Load is the only number that really matters when you're on site.
It’s clear that your span distance is the real boss of the run; keep those supports tight and your cables won't sag.
Everything relies on the foundation you build with your strut and brackets.
If you want gear that’s Unistrut Compatible and won't break the bank, we've got exactly what you need.
We focus on pragmatic trade pricing and hardware that just works, with next-day UK delivery available to keep your project on track.
Shop our full range of heavy-duty cable trays and strut systems at Direct Cutting and pick up the right parts for the job.
You have the knowledge now, so go out there and build something that stays solid for years to come.
You must total the weight per metre of every cable in the bundle by using the manufacturer data sheets. Honestly, guessing is how accidents happen on site. Once you have the sum of the copper and insulation, add a 20% buffer for future additions and accessories to ensure your cable tray weight capacity isn't immediately maxed out during the first week of use.
Most standard commercial installations use a support span of 1.2 to 1.5 metres. This spacing provides the best balance between structural stiffness and your material costs. If you push beyond a 2-metre gap, you’ll likely need to switch to heavy-duty tray or ladder systems to prevent the run from sagging and putting strain on your fixings.
It isn't recommended because armoured cables are exceptionally heavy and will likely cause light-duty metal to buckle or twist. You should always match the tray's duty rating to the specific mass of the cables you are installing. For SWA runs, medium or heavy-duty steel trays are the only professional choice for long-term safety and reliability.
Yes, the material choice changes the load characteristics and the project price point significantly. Steel is the most common choice for high-capacity jobs, whilst aluminium is lighter but requires different support spacing. As of July 2026, steel prices sit around $1,160 per short ton, making material selection a major factor in project bidding and structural planning.
The tray will begin to sag visibly, putting massive strain on your strut channel and wall fixings. If the sag exceeds 1/200th of the span, you risk a total structural failure that could pull down ceiling grids or ruin the cabling. It also makes adding any future cables impossible without a complete and expensive refit of the entire support system.
Yes, you must follow BS 7671 and international standards like IEC 61537 for load and deflection testing. There is also an increased focus on fire safety, with many critical sites now requiring E90 fire-resistance ratings. This ensures the cable tray weight capacity holds up for 90 minutes even during a high-temperature fire of up to 1000°C.
Add a 20% margin to your total weight calculation from the very start of the project. You should also keep an eye on the fill ratio; NEMA VE 1 recommends a 40% fill limit for power cables to prevent dangerous heat build-up. Planning for that extra room now prevents the need for a second parallel tray run when the client expands later.
