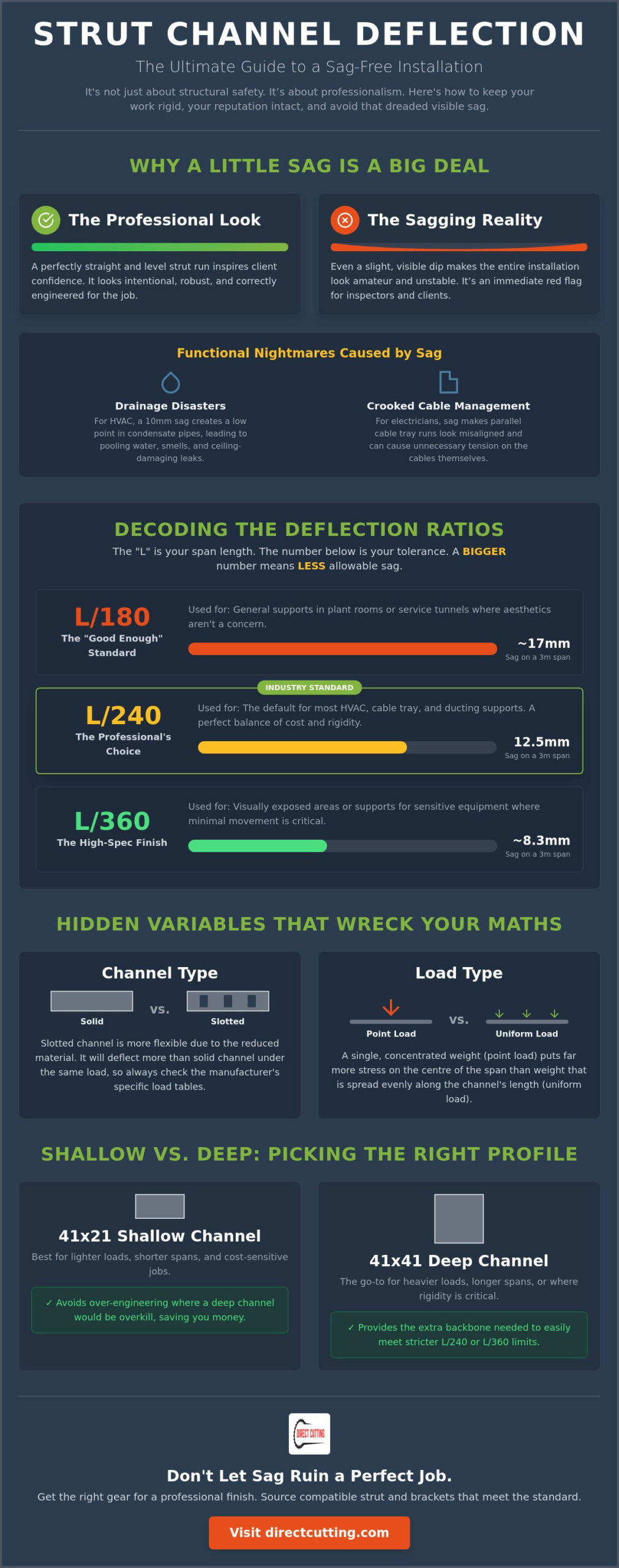

Have you ever walked onto a site and seen a run of 41x21 strut carrying a heavy pipe that looked more like a suspension bridge?
It happens because someone ignored their strut channel deflection limits.
Honestly, that visible sag makes your stomach churn.
You just know they've pushed the kit a bit too far.
An inspector will have a field day before they've even put their coffee down.
Nobody wants to waste money over-engineering a simple trapeze bracket with 41x41 deep channel if a slim profile does the job.
But there's a fine line between being cost-effective and watching your support system fail a basic stress test.
I'm going to show you how to respect the limits of your gear so your work stays rigid and your reputation stays intact.
We'll break down those confusing L/240 and L/360 ratios and figure out exactly when you need to swap your gauge for something with more backbone.
Here's where it gets interesting.
There are a few hidden variables that can ruin your calculations before you even pick up a spanner.
Deflection is just the degree to which a structural element is displaced under its working load.
In the trade, we just call it the bow in the beam.
Whilst you might think that if it isn't breaking, it's fine, that isn't how professional site managers see the world.
Understanding strut channel deflection limits is about more than just avoiding a catastrophic collapse; it's about making sure the job doesn't look like an amateur DIY project.
To better understand this concept, watch this helpful video:
A piece of 41x41 strut can technically support a massive amount of weight before it actually buckles or shears.
Most load tables focus on that point of failure because that's the legal safety requirement.
But a channel can be perfectly safe whilst sagging like a wet noodle.
When a client walks through for a handover and sees a row of trapeze brackets dipping in the middle, they won't care about your load calculations.
They see a system that looks unstable and unfinished.
Professionalism is about the appearance of safety as much as the reality of it.
If you're in the HVAC game, sag isn't just an eyesore; it's a functional disaster.
Imagine you've set a perfect fall on a condensate pipe, only for a 10mm deflection in the strut to create a low point.
Suddenly, you've got water pooling, stagnant smells, and eventually, a leak that ruins a ceiling.
For electricians, it's about the precision of your cable management.
When you have multiple tray runs side-by-side, even a tiny bit of sag in one section makes the whole run look crooked.
It can even cause unnecessary tension on the cables themselves if the tray isn't sitting level amongst the other supports.
Getting your strut channel deflection limits right from the start saves you the headache of a snag list that takes three days to fix.
When you look at a project spec sheet, you'll see these "L" numbers everywhere.
It's not some secret code; it's just a simple fraction that engineers use to keep everyone on the same track.
The "L" stands for the span length in millimetres.
If you have a support run spanning 3 metres between two brackets, your L is 3000.
The number underneath tells you how much sag the designer is willing to tolerate before they start getting nervous.
A higher number on the bottom of that fraction actually means a tighter, more rigid allowance for sag.
It feels a bit counter-intuitive at first, like trying to remember which way to turn a radiator valve, but it's vital for getting your strut channel deflection limits right.
Most UK specs will call out one of three specific ratios depending on what you're hanging and who's going to see it.
This is the most relaxed limit you'll likely encounter on a site.
It's often used for general industrial supports in plant rooms or service tunnels where looks don't matter one bit.
L/180 allows for the most movement whilst remaining structurally sound.
It's ideal for heavy pipework where a slight bow in the channel won't affect the performance of the system.
If you're spanning 3000mm, an L/180 limit allows for nearly 17mm of sag.
That's a visible dip, but in a basement full of boilers, nobody is going to pull you up on it.
If the spec doesn't explicitly state a ratio, this is the one most pros aim for by default.
It provides a solid balance between being cost-effective and looking professional.
For most HVAC and electrical contractors, L/240 is the sweet spot for cable tray and ducting supports.
It keeps the sag to a point where it's barely noticeable to the naked eye, ensuring your installation looks tidy.
When you need to hit this standard without overspending, choosing a high-quality strut channel is the smartest move you can make.
This is the strictest limit you'll face, and it's usually reserved for when the strut is visible to the public.
Think shopping centres, airports, or those trendy "exposed ceiling" office lobbies.
It's also used when you're supporting brittle materials like glass or plasterboard that can't handle any flex.
Even a few millimetres of movement could crack a finish or pop a screw head in these scenarios.
L/360 ensures the run looks perfectly straight, even over long distances, which is a standard often required by architectural specialists such as Sahara Doors & Metals LLC for their industrial and residential installations.
Here's where it gets interesting.
Just because you've picked the right ratio doesn't mean the steel will behave, as there are a few variables that can ruin your strut channel deflection limits in seconds.
You can have the best ratios in the world, but if you ignore the physical reality of the steel in your hands, the math simply won't save you.
Calculating strut channel deflection limits isn't a one size fits all exercise because the physical properties of the channel change the moment you start drilling holes or hanging concentrated weights.
It's easy to look at a load table and assume the numbers are set in stone; honestly, that's a quick way to end up with a sagging installation.
You need to look at how the load is applied and exactly what kind of profile you're using before you can trust your sag estimates.
It is common sense that a piece of steel with holes punched through it won't be as rigid as a solid, plain length.
The holes in slotted channel reduce what engineers call the Moment of Inertia.
In plain English, that's just a measure of how well a specific shape resists bending whilst under pressure.
Industry data shows that pierced or slotted channels can have their capacity reduced by anywhere from 5% to 30% compared to solid versions.
If you're pushing the limits of a span, sticking with plain channel is the smartest way to maintain maximum stiffness.
Most load tables you'll find online are based on a Uniformly Distributed Load, or UDL.
This assumes your weight is spread perfectly across the whole run, like a bunch of small pipes or a light cable tray.
Here's where it gets interesting.
If you place one heavy item, like a large HVAC pump or a heavy valve, right in the centre of the span, you're dealing with a point load.
A point load at the mid-span will cause roughly double the deflection of an equal weight spread out evenly.
If you've got a concentrated weight amongst your run, you really ought to over-spec the channel gauge to compensate for that extra stress.
The thickness of the steel, known as the gauge, is perhaps the biggest factor in the final rigidity of your support.
Moving from a 16-gauge channel to a 12-gauge version can more than triple the moment capacity of the beam.
That is a massive jump in performance for a relatively small increase in material cost.
You also need to consider lateral bracing to prevent the channel from twisting.
Unbraced strut beams can lose 20% or more of their load-carrying capacity because they start to suffer from torsional buckling.
Basically, the steel wants to roll over rather than just bend down.
Keep your spans braced and your gauge thick, and you'll find that staying within your strut channel deflection limits becomes much easier on the job site.
Measuring your span isn't just about making sure the steel fits the gap.
You need the exact distance between the two support points to keep your strut channel deflection limits under control.
If you're off by even a small amount, your calculations for sag will be completely useless on-site.
Check your project specification for the required deflection ratio before you start cutting.
Most professional jobs in the UK will call for L/240 as the standard allowance.
Once you have that figure, consult a load table for your specific strut channel UK profile.
Don't forget that the channel itself has mass; it isn't weightless, you know.
You must account for the weight of the steel whilst calculating your total load capacity.
For example, a 41x41 channel in 12-gauge steel over a 2.4-metre span might support nearly 195kg of uniform load.
But to hit a strict L/240 limit, you'd actually have to reduce that load to around 118kg to prevent visible sag.
If you're dealing with anything over a 1.5-metre span, 41x21 is usually far too flimsy for heavy services.
It's great for mounting flat against a wall, but as a horizontal beam, it sags far too quickly under pressure.
41x41 is significantly more resistant to sag and should be your default choice for most overhead runs.
In extreme cases where you have a massive span and a heavy load, back-to-back channel is often the only way to beat the deflection limit.
You can also use trapeze brackets to help distribute the weight more effectively across multiple support rods.
Sometimes the math looks good on paper but the installation just doesn't feel right.
If you're worried about the sag on a long run, pull a string line tight along the underside of the channel before you load it up.
It's a simple, old-school way to verify your work and see exactly how much the steel moves once the weight is applied.
You can also use a laser level to check for any dip after you've finished the install.
If the sag exceeds the client's spec, don't just leave it and hope they don't notice.
Add an extra support point or swap out the channel for a heavier gauge before you sign off the job.
Keep your installations rigid and professional by choosing the right gear from the start. Order your heavy-duty strut channel today for a sag-free finish on every run.
You can spend hours with a calculator and a level, but if you start with poor-quality steel, you'll never truly master your strut channel deflection limits.
Quality steel is the absolute foundation of any low-deflection system.
If you buy thin-walled, cut-price channel that doesn't meet the proper gauge specifications, the metal will behave like a spring rather than a structural support.
It's a frustrating way to work, and it usually ends with you adding extra threaded rod just to stop the whole run from bouncing.
We believe in providing gear that does exactly what it says on the tin without the massive markup of the big brand names.
Direct Cutting provides sensible prices on kit that is built to last on a busy site.
Our channel is fully compatible with major industry brands, so you don't have to worry about your existing brackets or nuts not fitting properly.
Reliability is about the quality of the steel and the precision of the manufacturing, not just the sticker on the side of the delivery van.
Using our pre-cut lengths is a massive advantage when you need to stay organised on a tight schedule.
Because these lengths are cut in a controlled environment, you get clean, perfectly square ends every single time.
This might seem like a small detail, but a square end ensures your base plates and brackets sit flush, which actually helps maintain the rigidity of the entire assembly.
It's much easier to manage your strut channel deflection limits when every joint is tight and every span is precise.
If you want to avoid the brand-name tax and the hassle of manual cutting on site, it's worth knowing how to buy strut channel online from a supplier who cuts to size and delivers straight to your job.
Before you pack up your tools and call the job done, there are a few final checks that can save you a world of pain during an inspection.
Even the best channel will start to sag if the connections aren't secure.
Using the right strut channel fittings is vital to ensure your joints do not slip whilst under full load.
Check that your beam clamps are seated correctly on the flange; if they're even slightly off, the weight of the services can cause them to shift, leading to an immediate dip in the run.
Tighten every bolt to the correct torque, especially if you're using nyloc nuts in a high-vibration environment like a plant room.
Honestly, just double-check your spans one last time before the inspector arrives on site.
It is far easier to add a quick support now than it is to explain away a visible sag to a client who expects perfection.
Ultimately, a rigid, straight installation is your professional signature.
It shows you understand the material, you respect the math, and you don't cut corners when it comes to the safety of the build.
Honestly, mastering strut channel deflection limits is what separates the veterans from the lads who just want to get home early.
You now know that choosing the right ratio, whether it's L/240 for a standard tray run or L/360 for a high-end lobby, is about protecting your reputation as much as the pipework.
Don't let a poorly calculated span or a flimsy piece of thin-gauge steel be the reason you're called back to a site for a snag list.
We've got the Unistrut compatible systems you need to keep everything straight and true.
With next-day delivery available across the UK and sensible trade pricing on bulk orders, there is no reason to settle for second best.
Browse our range of professional-grade strut channel and fittings at sensible prices.
Go get that next run installed with the confidence that it'll look just as good in ten years as it does this afternoon.
The maximum deflection isn't a fixed number; it's a ratio based on the specific requirements of your project. Most standard industrial installations follow the L/240 rule, which keeps the sag to a point where it is structurally sound and barely visible to the naked eye.
You simply divide the span length in millimetres by the ratio number. For a 2-metre span, that is 2000mm divided by 240, which gives you a maximum allowable sag of approximately 8.3mm at the centre point.
Slotted channel is physically less rigid because the holes reduce the amount of steel available to resist bending. This means you'll hit your strut channel deflection limits much sooner with slotted channel, as its capacity can be 5% to 30% lower than a solid plain profile.
Using back-to-back channel is a brilliant way to stiffen up a long run without adding extra support rods. By doubling the depth of the steel, you massively increase the moment of inertia, making the beam far more resistant to bowing under heavy loads.
Ignoring these limits leads to visible sag that looks unprofessional and often results in failed site inspections. Practically, it can cause HVAC condensate pipes to lose their fall or put unnecessary physical tension on electrical cable tray systems.
The weight of the channel is a "dead load" that starts pulling on the supports before you've even finished the install. You must subtract the weight of the steel from the allowable uniform load in your tables to ensure your total deflection stays within spec.
Honestly, 41x21 channel is far too shallow for a 3-metre horizontal span. It lacks the vertical depth to remain rigid over that distance and will almost certainly sag like a wet noodle once you apply any real weight.
You won't usually need an engineer for standard trapeze brackets or simple runs if you're following the manufacturer's load tables. For complex cantilever setups or anything supporting heavy plant machinery, getting a professional sign-off is a sensible way to protect your liability.
